Indoor PremiseNode and Outdoor MetroNode Premise Optical Nodes | |||||
Olson Technology
optical nodes provide high RF output and wide optical input. The PremiseNode family offers indoor optical
nodes while the MetroNode family are high performance outdoor optical
nodes.
Contact Olson Technology, Inc. for Data Sheets or Operating Manuals not available from this page. |
|||||

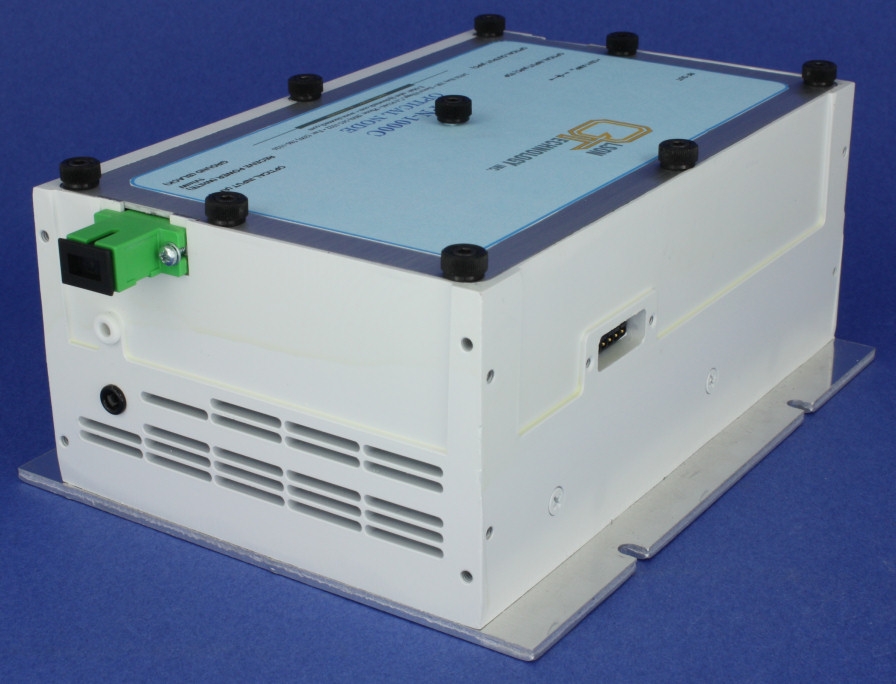

Model OTPN-2000C 1GHz High Output 1-Port Indoor Optical Node | ![]() Model OTPN-2000C 1GHz High Output Outdoor Optical Node |
||||
The
Model OTPN-2000C PremiseNode is Olson's flagship indoor optical
node, offering high output and premium performance. It features high
1GHz RF output
level (+46dBmV) and wide optical input range (+2 to -6dBm) with excellent
CNR/CSO/CTB
distortion characteristics. The unit has complete RF and optical test
points, slope
and RF control via plug-in pads and EQs, a field-upgradeable OTPT-x, DFB, or CWDM return transmitter module for 2-way DOCSIS-compliant operation,
and built-in 90-240VAC power supply... all in a compact, rugged, cast aluminum housing.
|
|||||
Model
OTPT-300A Low-Cost
Return Path Transmitter
|

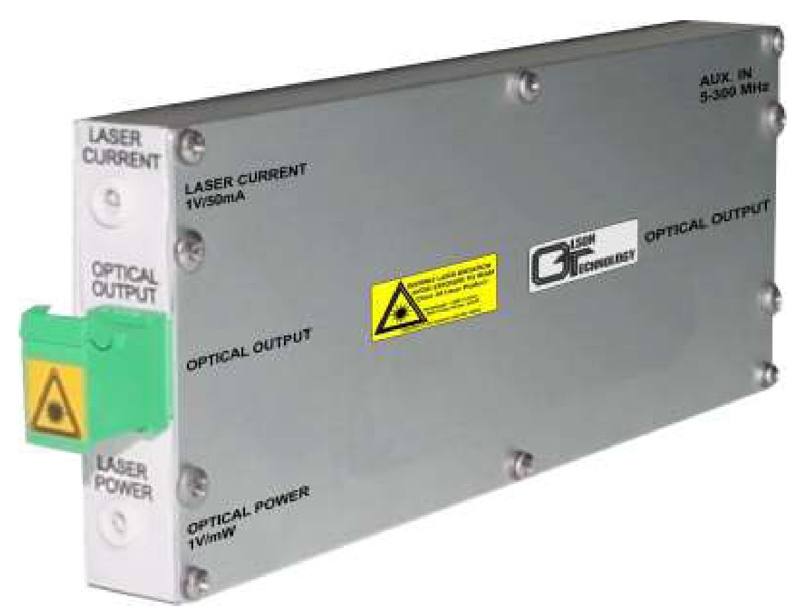

![]() Model OTPT-300A Low-Cost Return Path Transmitter |
||||
The
Model OTPT-300A is a cost-effective, field installable return laser transmitter with an RF passband of 5 to 300MHz. The unit comes in several models including a 1310nm DFB laser with 3mW output (+4.8dBm), a 1550nm DFB laser with 2.5mW output (+4.0dBm), or a CWDM laser with a 2.5mW output (+4.0dBm). This transmitter is intended only for indoor applications. This transmitter must be mounted to an Olson OTPN-2000C or OTPN-1000. It will not function as a stand-alone device.
|
|||||
Model
OTPN-3000 Precision Optic Node
|
![]() Model OTPN-3000 Precision Optic Node |
||||
The Model OTPN-3000 Precision Optic Node includes a high-performance 1550nm CATV receiver, a precision 3-wavelength (1310nm, 1490nm & 1550nm) optical power meter and battery power good for four hours of operation. The OTPN-3000 CATV receiver is fully compatible with all 1550nm forward path transmitters. The OTPN-3000 provides an output of +38 dBmV of RF over the entire optical input range, allowing multiple RF splits without the use of an external RF amplifier. The Precision Optic Node is unique because it operates over a ultra-wide optical input range of -8dBm to +2.0dBm without degrading performance. |
|||||
Model OTPN-MDN-870 Fiber Optic Mini Digital Node | ![]() Model OTPN-MDN-870 Fiber Optic Mini Digital Node |
||||
The Model
OTPN-MDN-870 Fiber Optic Mini Digital Node (MDN) provides CATV headend
operators with a unique node featuring an extensive array of features,
small size and low-cost. The MDN is fully compatible with Olsons line
of forward path transmitters and return path receivers. The MDN provides
an output of +38dBmV of RF over the entire optical input range, allowing
multiple RF splits without the use of an external RF amplifier. The Mini
Digital Node is unique because it operates over a ultra-wide optical input
range of -8dBm to +2.0dBm without degrading performance. A built-in LCD
display and digital control buttons allow the operator to accurately set
the tilt and RF output levels to ensure quality of service. The unit
remembers specific settings even if power is lost. The OTPN-MDN-870 can be
ordered either with or without a return path module.
|
|||||
Model
OTPN-800C-H/L 1-Port Mid-range Indoor Optical Node
|

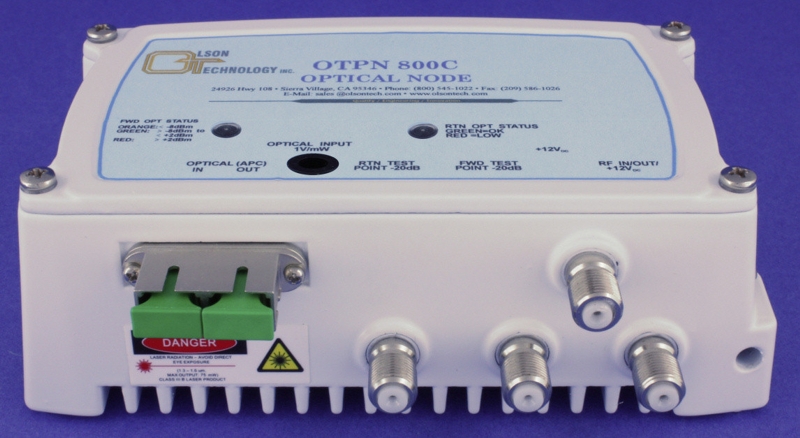

![]() Model OTPN-800C Mid-range Indoor Optical Node |
||||
The
Model OTPN-800C-H/L PremiseNode is Olson's mid-range indoor
optical node. It features two (2) RF output level choices ("L"
@ +28dBmV -or- "H" @ +38dBmV) and wide optical input range
(+2 to -8dBm) with excellent CNR/CSO/CTB performance. The units
feature a factory-installed
or field-upgradeable F-P, DFB, or CWDM return transmitter for 2-way
DOCSIS-compliant
operation, and local or remote "up-the-coax" 12VDC powering...
all in a compact, rugged, cast aluminum housing.
|
|||||

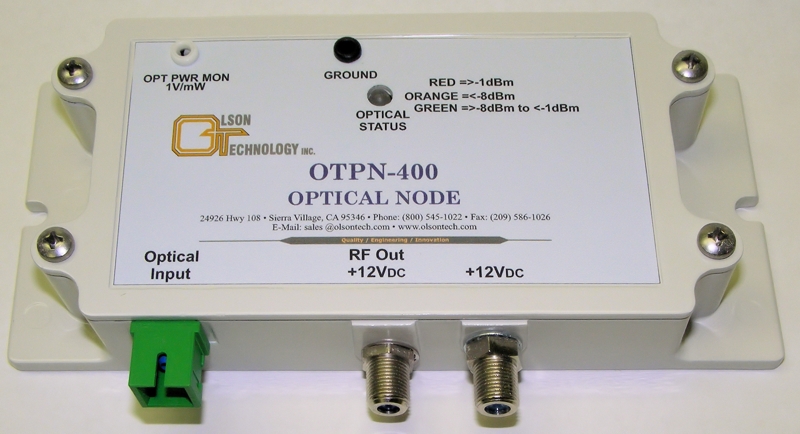

Model OTPN-400C Indoor Optical Node | ![]() Model OTPN-400C Indoor Optical Node |
||||
The
Model OTPN-400C PremiseNode is Olson's entry-level, no-frills,
receive-only indoor optical node. It is specifically designed for direct
fiber transmission of CATV signals in FTTX, PON, MDU, industrial, corporate,
government, educational or other I-Net applications that require a low cost,
compact, DC-powered, high performance, 1,000MHz optical receiver.
It is features high optical sensitivity and low noise, and has a number
of flexible unit powering and optical connector options.
|
|||||
Model
OTMN-III High Performance 4-Port Outdoor Optical Node
|

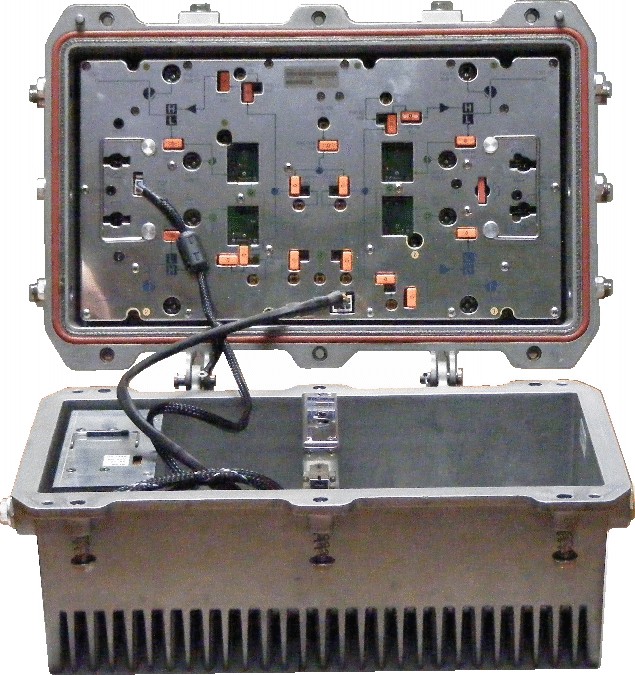

![]() Model OTMN-III Outdoor Optical Node |
||||
The Model OTMN-III MetroNode is Olson's 1 GHz flagship outdoor node featuring high performance, low-profile and cost-effective installation. It is available in a popular 4-port two-way configuration, each port having a +48 dBmV output. Additional options include redundant or split-band forward/return path operation, a wide variety of DFB and CWDM return path transmitters, and choice of frequency diplexer splits. Each output port can be configured for isolated forward and reverse operation. |
|||||
Model OTPN-3850-SA 3.85GHz Wideband FTTH PON Receiver | ![]() Model OTPN-3850-SA Wideband FTTH PON Receiver |
||||
The Model OTPN-3850-SA 3.85GHz Wideband FTTH PON Optical Receiver provides 50-3,850MHz bandwidth, allowing it to carry CATV signals from 50-870MHz along with two stacked 950-2,150MHz L-Band signals. The L-Band signals are at a level at least 10dB below the CATV signals The flange-mount standalone unit operates as a receive-only indoor optical node for fiber-deep FTTX/PON CATV applications. |
|||||
|
